Author Topic: Panzerkampfwagen III & IV Ideas and Inspiration  (Read 2987 times)

Offline dy031101

  • Yuri Fanboy and making cute stuff practical- at least that's the plan anyway
  • Prefers Guns And Tanks Over Swords And Magic
Panzerkampfwagen III & IV Ideas and Inspiration
« on: December 15, 2015, 02:21:03 PM »

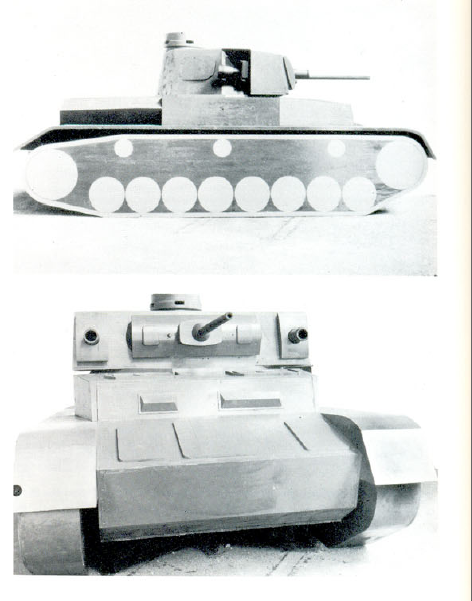

Unbuilt version with two 75mm recoilless guns and one 30mm Mk103:

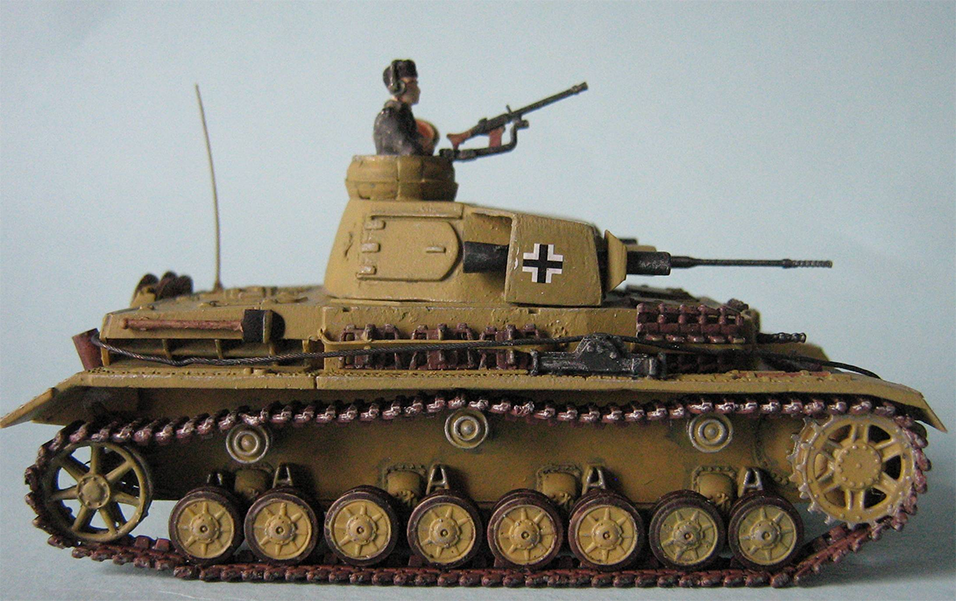

More pictures of the model here.
« Last Edit: January 22, 2016, 05:11:40 AM by dy031101 »
Forget about his bow and arrows- why wait until that sparrow has done his deed when I can just bury him right now 'cause I'm sick and tired of hearing why he wants to have his way with the cock robin!?

Offline GTX_Admin

  • Evil Administrator bent on taking over the Universe!
  • Administrator - Yep, I'm the one to blame for this place.
  • Whiffing Demi-God!
    • Beyond the Sprues
Re: Panzerkampfwagen III & IV Ideas and Inspiration
« Reply #1 on: December 16, 2015, 02:52:34 AM »
Interesting.  I have never heard of this proposed version.
All hail the God of Frustration!!!

Offline ysi_maniac

  • I will die understanding not this world
Re: Panzerkampfwagen III & IV Ideas and Inspiration
« Reply #2 on: January 21, 2016, 09:50:26 AM »
Can I add here Panzerkampfwagen III?


Offline GTX_Admin

  • Evil Administrator bent on taking over the Universe!
  • Administrator - Yep, I'm the one to blame for this place.
  • Whiffing Demi-God!
    • Beyond the Sprues
Re: Panzerkampfwagen III & IV Ideas and Inspiration
« Reply #3 on: January 22, 2016, 02:42:19 AM »
Go for it
All hail the God of Frustration!!!

Offline ysi_maniac

  • I will die understanding not this world
Re: Panzerkampfwagen III & IV Ideas and Inspiration
« Reply #4 on: January 22, 2016, 04:06:28 AM »
^^^^^
Can you update title of thread?

Offline ysi_maniac

  • I will die understanding not this world
Re: Panzerkampfwagen III & IV Ideas and Inspiration
« Reply #5 on: January 26, 2016, 11:17:41 AM »
Geschutzwagen IVb is derived from Panzer III, as indicated by wheels; or from Panzer IV as the name indicate?

http://cs.finescale.com/fsm/modeling_subjects/f/3/t/98447.aspx?page=1

Offline GTX_Admin

  • Evil Administrator bent on taking over the Universe!
  • Administrator - Yep, I'm the one to blame for this place.
  • Whiffing Demi-God!
    • Beyond the Sprues
Re: Panzerkampfwagen III & IV Ideas and Inspiration
« Reply #6 on: January 26, 2016, 12:06:02 PM »
It was based on the Panzer IV

Random idea: use turret on Panther to great Panther SPH
All hail the God of Frustration!!!

Offline Logan Hartke

  • High priest in the black arts of profiling...
  • Rivet-counting whiffer
Re: Panzerkampfwagen III & IV Ideas and Inspiration
« Reply #7 on: January 26, 2016, 11:43:03 PM »
Geschutzwagen IVb is derived from Panzer III, as indicated by wheels; or from Panzer IV as the name indicate?

http://cs.finescale.com/fsm/modeling_subjects/f/3/t/98447.aspx?page=1


It's PzKpfw IV, but with one fewer set of roadwheels on a shortened hull, so that's why you probably think it looks Pz III-like. Ironically, just having PzKpfw IV suspension units isn't enough to say that it's based on a Pz IV chassis. The Hummel and Nashorn, for instance, were based on a hybrid Pz III/IV chassis. It takes the driving and steering system from the Pz III and the suspension and engine from the Pz IV.

Cheers,

Logan

Offline GTX_Admin

  • Evil Administrator bent on taking over the Universe!
  • Administrator - Yep, I'm the one to blame for this place.
  • Whiffing Demi-God!
    • Beyond the Sprues
Re: Panzerkampfwagen III & IV Ideas and Inspiration
« Reply #8 on: December 21, 2016, 05:44:51 AM »
Stug III with 88mm gun:

All hail the God of Frustration!!!

Offline Volkodav

  • Counts rivits with his abacus...
  • Much older now...but procrastinating about it
Re: Panzerkampfwagen III & IV Ideas and Inspiration
« Reply #9 on: December 21, 2016, 09:20:25 AM »
How about instead of the Panther the Germans simply updated the Panzer IV with the required features, sloped hull armour (perhaps a common angle to the Jagdpanzer IV for standardisation purposes) and if the L70 is not possible maybe an intermediate similar to the British 77mm HV vs the 17pdr.  Improved suspension would also be good and maybe an improved trans and engine.

Offline GTX_Admin

  • Evil Administrator bent on taking over the Universe!
  • Administrator - Yep, I'm the one to blame for this place.
  • Whiffing Demi-God!
    • Beyond the Sprues
Re: Panzerkampfwagen III & IV Ideas and Inspiration
« Reply #10 on: December 24, 2016, 03:46:54 AM »
How about instead of the Panther the Germans simply updated the Panzer IV with the required features, sloped hull armour (perhaps a common angle to the Jagdpanzer IV for standardisation purposes) and if the L70 is not possible maybe an intermediate similar to the British 77mm HV vs the 17pdr.  Improved suspension would also be good and maybe an improved trans and engine.


Maybe something akin to the Panzer IV Ausf. H Kruppvorschlag:


All hail the God of Frustration!!!

Offline Volkodav

  • Counts rivits with his abacus...
  • Much older now...but procrastinating about it
Re: Panzerkampfwagen III & IV Ideas and Inspiration
« Reply #11 on: December 24, 2016, 07:15:37 PM »
Yep.

Actually planning something similar with a Comet and maybe a Cromwell, sloped nose and bigger gun.

Offline Rickshaw

  • "Of course, I could be talking out of my hat"
Re: Panzerkampfwagen III & IV Ideas and Inspiration
« Reply #12 on: December 24, 2016, 07:43:04 PM »
Yep.

Actually planning something similar with a Comet and maybe a Cromwell, sloped nose and bigger gun.

I've done this, a long, long, long time ago.   You end up with something looking like a miniature Centurion.  Its one way of seeing the ancestry of the Centurion.

Offline Volkodav

  • Counts rivits with his abacus...
  • Much older now...but procrastinating about it
Re: Panzerkampfwagen III & IV Ideas and Inspiration
« Reply #13 on: December 24, 2016, 10:22:15 PM »
Yep.

Actually planning something similar with a Comet and maybe a Cromwell, sloped nose and bigger gun.

I've done this, a long, long, long time ago.   You end up with something looking like a miniature Centurion.  Its one way of seeing the ancestry of the Centurion.

That's pretty much what I was thinking.  The back story would be Australia, after license producing something else (maybe the Matilda Medium I've been rabbiting on about for ages) Australia decides they need a more modern replacement and select the A24/27 but are able to modify the design, as they had done with the Matilda to incorporate various improvements.

Offline ysi_maniac

  • I will die understanding not this world
Re: Panzerkampfwagen III & IV Ideas and Inspiration
« Reply #14 on: July 07, 2018, 07:14:06 AM »
StuG III '46

« Last Edit: July 07, 2018, 07:19:10 AM by ysi_maniac »
