Author Topic: RS Models Reggiane Re.2007 Conjectured Post-WWII Swept Wing Turbojet Design  (Read 208 times)

Offline Retired In Kalifornia

  • Earliest "Realistic" Art Of Mine Rendered In 1997
The Reggiane Re.2007 interceptor jet fighter was a never built nor official aircraft project of Officine Meccaniche Reggiane SpA it in fact being a post WWII design concept despite embellished accounts of it having been underway as a Reggiane project since 1943 by American, British & Italian aviation writers.

Rightly belonging in the “what-if” aircraft category the Re.2007 possibly had its origins in the wartime Reggiane Re.2005R (Reazione – Reaction) motorjet “paper project” submitted to the Regia Aeronautica Italia Stato Maggiore by Reggiane’s top designer Roberto Longhi of a redesigned Daimler-Benz DB.605-powered Re.2005 fuselage fitted with a 460hp FIAT A.20 V-12 engine powering a high pressure compressor pushing air into a tail-mounted fuel combustion chamber providing jet thrust, its sleek post-war swept-winged turbojet-powered design traced to a certain Pellizzola who’d made drawings of it based upon speculative reconstructions derived from another Reggiane engineer's supposed descriptions of the aircraft concept:



After the war Longhi attempted to procure two Junkers Jumo 004 turbojets stored in Udine Ronchi dei Legionari (Trieste – Friuli Venezia today) airport since early 1945 as spares for Luftwaffe Arado Ar 234 Reconnaissance Aircraft  “for conducting experiments” of an undetermined nature but instead were obtained by the reformed Società Aeronautica Italiana Ambrosni, possibly the origin of stories regarding Reggiane supposedly having obtained them to power the Re.2007 prototype their fates unknown.

The Kit Build

Amongst the most intriguing “what-if” aircraft subjects ever scale modeled the early 2000s-vintage 1/72 scale RS Models 72123 Reggiane Re.2007 resin kit with vacuform clear plastic canopy is the only one available in this scale. Probably if not likely based on Pellizzola’s post-WWII drawings the kit despite its small size is well casted with molded-in pilot cockpit detail lending itself to extra detailing.

The pilot cockpit “box” centers on u-shaped part with port & starboard outward “wings” joystick & pilot seat placed inside aft bottom, flight instrument panel glued on wings forward of joystick. The kit’s joystick disintegrated whilst removing resin flash, fabricated stronger replacement with sheet styrene plastic. The kit lacked rudder control bar, fabricated one from styrene sheet plastic glued it on forward of joystick; kit lacked pilot seatbelts fabricated them from cut off strips of Scotch Magic Mending Tape sprayed over with Humbrol 29 Matt Dark Earth enamel paint buckle ends hand painted Testor Flat Aluminum enamel.  The model lacked a gunsight, fabricated generic one well as gyrocompass unit mounted on fuselage aft of pilot seat from styrene sheet plastic. The kit included oxygen bottle & radio parts too large for placement anywhere inside box set them aside.

The pilot cockpit box rests atop semi-circular protuberances molded inside fuselage halves with bulkhead aft of box though no aft space to “seat” latter, gouged resin off protuberances & trimmed bulkhead sides to do so. The kit comes with nose landing gear stow box, jet engine nose air intake stake & exhaust tailpipe parts (drilled hole through latter) they, cockpit box & bulkhead were glued in place on inside port fuselage halve.

The fuselage halves & mainwings easily glued together and on, much seam puttying well as building up trailing edges around fuselage-mainwing joins necessary, tailplane easily glued on upper rear fuselage, rudder-sail over tailplane & upper rear fuselage, much puttying filling in large gap between rudder-sail and tailplane. The kit lacked a Pitot tube, fabricated it from styrene sheet plastic gluing it on portside mainwing. No Venturi tubes were added, uncertain whether post WWII Italian jets continued using pre-war types.

The adequately detailed though brittle vacuform clear plastic cockpit canopy was bear working with, sideways slanting crack formed halfway around it 2 millimeters from aft end whilst trimming flash off starboard side, filled it in with cyanoacetate glue sanding both sides of still visible seam with machine oil soaked fine grit hobby sandpaper, polishing it with plastic cleaning compound followed by extensive size trimming, filing & sanding to snugly fit it over & either side of cockpit. The canopy couldn’t be cut apart to glue cockpit portion in open position, closing gaps between it and fuselage cockpit area entailed fabricating & gluing shims on fuselage leaving seam scars, puttying & sanding work to hide them not worth the effort.

Painting the model entailed using an assortment of spray or hand painted on enamels:

•   Pilot cockpit fuselage area insides, landing gear nose box & mainwing wheel well interiors Humbrol 78 Matt Cockpit Green scale lightened with Testors Flat White.

•   Instrument panels Testors Flat Black & White “special mix”, instruments Flat White, Yellow, Blue, Aluminum & (Model Master) Red.

•   Pilot seat, flight deck top, joystick, rudder bar, jet engine nose air intake stake, fuselage halve interior areas around engine exhaust “can” Testors Flat Aluminum,

•   Exhaust “can” insides spot mix Testors Flat Steel + “special mix”.

•   Fuselage dorsal spine either side of cockpit canopy & canopy frames “special mix”.

•   Landing gear struts Testors Flat Aluminum & Silver, wheels Rubber + Black + White “special mix”.

•   Entire model overall including outsides of landing gear covers Testors Flat Aluminum, mainwing navigation lights Testors Flat Green & (Model Master) Red.

The cockpit canopy needed to be glued on over the fuselage cockpit area before spraying aluminum over the canopy frames, was able to do this but not without getting the aforementioned gaps between the canopy and fuselage cockpit area.

Rightly being a post WWII aircraft design SKY Models (SM) 72-014 Macchi C.202 Aeronautica Militare Italiana cockades, SM 72-008 & Tauro Models 72/522 Reggiane fighter manufacturer logos & aircraft data water decals were used, not wanting the model to appear toy-like dispensed with over-spraying it with clear lacquer.

- > Fuselage interior assemblies:




- > Fuselage Halve Test Fits:



- > Mainwings glued on fuselage, tailplane & rudder-sail parts glued on upper rear fuselage, large gap between rudder-sail & tailplane parts puttied filled:

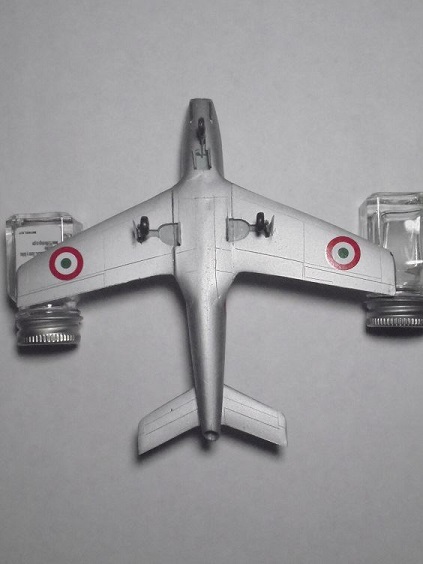

- > Completed Model Photos:


/center]











« Last Edit: February 18, 2020, 01:03:46 PM by Retired In Kalifornia »

Offline Jeffry Fontaine

  • Unaffiliated Independent Subversive...and the last person to go for a trip on a Mexicana dH Comet 4
  • Global Moderator
  • His stash is able to be seen from space...
Nice conversion and it looks quite similar to the Dassault M.D.450 Ouragan in some of your images.
"Every day we hear about new studies 'revealing' what should have been obvious to sentient beings for generations; 'Research shows wolverines don't like to be teased" -- Jonah Goldberg

Offline Retired In Kalifornia

  • Earliest "Realistic" Art Of Mine Rendered In 1997
Thanks...
« Reply #2 on: February 15, 2020, 11:56:53 AM »
Nice conversion and it looks quite similar to the Dassault M.D.450 Ouragan in some of your images.
...It's not a conversion but an actual 1/72 resin model from RS Models on the market since the early 2000s, just completed it today for posting on another website. The Reggiane Re.2007 arguably belongs in the "What-If" aircraft category, its very long, very colorful backstory history has little basis in fact other than it being a design concept embellished over the decades by others. My first exposure was Profile Publication 244 featuring a post-WWII sketch rendering of the aircraft presumably Mr. Pellizzola's forming the basis of everything afterwards regarding the design concept.
« Last Edit: February 17, 2020, 02:07:46 AM by Retired In Kalifornia »

Offline elmayerle

  • Its about time there was an Avatar shown here...
  • Über Engineer...at least that is what he tells us.
Beautiful job on that one.  That kit is one of my "Holy Grail" kits, so please let me know if you find another.  Justo Miranda has some interesting speculation on this one in one of his paperback publications.

Offline Retired In Kalifornia

  • Earliest "Realistic" Art Of Mine Rendered In 1997
Will Do Evan...
« Reply #4 on: February 15, 2020, 01:35:18 PM »
Beautiful job on that one.  That kit is one of my "Holy Grail" kits, so please let me know if you find another.  Justo Miranda has some interesting speculation on this one in one of his paperback publications.
...they come up for sale time-to-time on eBay, bought mine over decade ago not too many years after it came on the market. For over decade as well the RS Models Re.2007 was going to be my absolute last "Italian" build but still have 18 injected plastic, vacuform, resin kits & conversions to go, wanna  built them all by year's end, start on limited Luftwaffe series commencing with classic 1960s FROG, Lindberg, Revell Heinkel 219 kits, bad as they are never did them all at one time.

You'd asked me last year about getting an Italian Kits FIAT G.50V when rereleased, owner told me year ago it was going to be but nothing yet. SEM Model is out of business for all intents, owner died suddenly last year leaving wife & three kids, desperately wanted their 1/72 Savoia-Marchetti SM.84 when rereleased now must settle with building the two ancient Xotic-72 kits got in stock. All my "Italians" are on STORMO! Magazine; Beyond The Sprues (BTS) graciously allowed me to post about building some of them whilst STORMO! was off line near year ago, y'all here on BTS have been very kind to me, appreciate that more than y'all know!
« Last Edit: February 15, 2020, 01:39:37 PM by Retired In Kalifornia »
