Author Topic: Locomotives  (Read 1602 times)

Offline ysi_maniac

  • I will die understanding not this world
Locomotives
« on: May 30, 2022, 08:36:41 PM »
Toying with Big Boy and Southern Pacific class GS-4 4449 type aka Golden State

1st and 2nd are the real things

3th is 4449 with  Big Boy config, a huge locomotive

4th is Big Boy lightly steam lined

Logged

Offline GTX_Admin

  • Evil Administrator bent on taking over the Universe!
  • Administrator - Yep, I'm the one to blame for this place.
  • Whiffing Demi-God!
    • Beyond the Sprues
Re: Locomotives
« Reply #1 on: May 31, 2022, 01:19:47 AM »


CFBV
Logged
All hail the God of Frustration!!!

You can't outrun Death forever.
But you can make the Bastard work for it.

Offline finsrin

  • The Dr Frankenstein of the modelling world...when not hiding from SBA
  • Finds part glues it on, finds part glues it on....
Re: Locomotives
« Reply #2 on: May 31, 2022, 05:06:55 AM »
 Just what railroads need or perhaps not.
Logged

Offline The Big Gimper

  • Any model will look better in RCAF, SEAC or FAA markings
  • Global Moderator
  • Cut. Cut. Cut. Measure. Cut. Cut. Crap. Toss.
    • Photobucket Modeling Album
Re: Locomotives
« Reply #3 on: May 31, 2022, 06:12:21 AM »
Questions:

1. Only 9 traction wheels?
2. What is the turning radius?

Otherwise I want one.
Logged
Work in progress ::

I am giving up listing them. They all end up on the shelf of procrastination anyways.

User and abuser of Bothans...

Offline Buzzbomb

  • Low Concentration Span, oft wanders betwixt projects
  • Accurate Scale representations of fictional stuff
    • Club and my stuff site
Re: Locomotives
« Reply #4 on: May 31, 2022, 06:29:22 AM »
Snowpiercer ?
Logged

Offline ysi_maniac

  • I will die understanding not this world
Re: Locomotives
« Reply #5 on: May 31, 2022, 09:20:48 PM »
Blue Train 8) :-\

Logged

Offline ysi_maniac

  • I will die understanding not this world
Re: Locomotives
« Reply #6 on: May 31, 2022, 09:23:04 PM »
Talgo truck

Logged

Offline ysi_maniac

  • I will die understanding not this world
Re: Locomotives
« Reply #7 on: May 31, 2022, 09:27:26 PM »
Non electrical alternatives to TGV locomotives.

Logged

Offline GTX_Admin

  • Evil Administrator bent on taking over the Universe!
  • Administrator - Yep, I'm the one to blame for this place.
  • Whiffing Demi-God!
    • Beyond the Sprues
Re: Locomotives
« Reply #8 on: June 01, 2022, 01:38:19 AM »
Train from Man in the High Castle series:





CFBVs

And video:  https://www.youtube.com/watch?v=-ih8G8N7e6g
Logged
All hail the God of Frustration!!!

You can't outrun Death forever.
But you can make the Bastard work for it.

Offline apophenia

  • Perversely enjoys removing backgrounds.
  • Patterns? What patterns?
Re: Locomotives
« Reply #9 on: June 03, 2022, 10:31:21 AM »
Quote from: GTX_Admin on June 01, 2022, 01:38:19 AM
Train from Man in the High Castle series: ...

I don't know the series but I like the look of that train. Less sure about the armament ... so decided to 'deNazify' it.
Logged
Cryin' won't help you, prayin' won't do you no good

Offline Old Wombat

  • "We'll see when I've finished whether I'm showing off or simply embarrassing myself."
  • "Define 'interesting'?"
Re: Locomotives
« Reply #10 on: June 03, 2022, 10:53:35 PM »
The only sensible guns on it were the turrets, the forward firing guns would be next to useless.
Logged
"This is the Captain. We have a little problem with our engine sequence, so we may experience some slight turbulence and, ah, explode."

Offline ysi_maniac

  • I will die understanding not this world
Re: Locomotives
« Reply #11 on: June 08, 2022, 01:31:29 AM »
Short versions of known SNCF electric locomotives , that apear on top of each image.



Logged

Offline GTX_Admin

  • Evil Administrator bent on taking over the Universe!
  • Administrator - Yep, I'm the one to blame for this place.
  • Whiffing Demi-God!
    • Beyond the Sprues
Re: Locomotives
« Reply #12 on: June 08, 2022, 02:50:13 AM »
How about racing locomotives:



More here
Logged
All hail the God of Frustration!!!

You can't outrun Death forever.
But you can make the Bastard work for it.

Offline finsrin

  • The Dr Frankenstein of the modelling world...when not hiding from SBA
  • Finds part glues it on, finds part glues it on....
Re: Locomotives
« Reply #13 on: June 08, 2022, 04:51:18 AM »
Nifty  :smiley:
Logged

Offline ysi_maniac

  • I will die understanding not this world
Re: Locomotives
« Reply #14 on: June 13, 2022, 09:46:08 PM »
Grosser Junge

What if Big Boy config applied to german BR42?



Top, BigBoy; center, Grosser Junge; and bottom, BR-42
Logged

Offline ysi_maniac

  • I will die understanding not this world
Re: Locomotives
« Reply #15 on: June 16, 2022, 06:06:44 PM »
One vision of Soviet Atomic Train. See track gauge :o :blink:

Logged

Offline GTX_Admin

  • Evil Administrator bent on taking over the Universe!
  • Administrator - Yep, I'm the one to blame for this place.
  • Whiffing Demi-God!
    • Beyond the Sprues
Re: Locomotives
« Reply #16 on: June 17, 2022, 01:32:42 AM »
Wow!
Logged
All hail the God of Frustration!!!

You can't outrun Death forever.
But you can make the Bastard work for it.

Offline raafif

  • Is formally accused of doing nasty things to DC-3s...and officially our first whiffing zombie
  • Whiffing Insane
Re: Locomotives
« Reply #17 on: June 17, 2022, 08:36:02 AM »
They must have captured Hitler's plans for a train on super-wide track. :-\
Logged

Offline ysi_maniac

  • I will die understanding not this world
Re: Locomotives
« Reply #18 on: June 17, 2022, 03:56:04 PM »
This different design is marked as Soviet Atomic Train too. Track gauge looks huge, only two floors, ... but those rods connecting wheels looks steam. ???

« Last Edit: June 17, 2022, 04:10:01 PM by ysi_maniac »
Logged

Offline aerospacer

  • Newly Joined - Welcome me!
Re: Locomotives
« Reply #19 on: June 19, 2022, 05:56:54 AM »
Logged
Would be marching to the beat of his own drum, if he didn't detest marching to any drumbeat at all so much.

Offline The Big Gimper

  • Any model will look better in RCAF, SEAC or FAA markings
  • Global Moderator
  • Cut. Cut. Cut. Measure. Cut. Cut. Crap. Toss.
    • Photobucket Modeling Album
Re: Locomotives
« Reply #20 on: June 19, 2022, 07:54:57 PM »
Logged
Work in progress ::

I am giving up listing them. They all end up on the shelf of procrastination anyways.

User and abuser of Bothans...

Offline ysi_maniac

  • I will die understanding not this world
Re: Locomotives
« Reply #21 on: June 29, 2022, 01:40:55 AM »

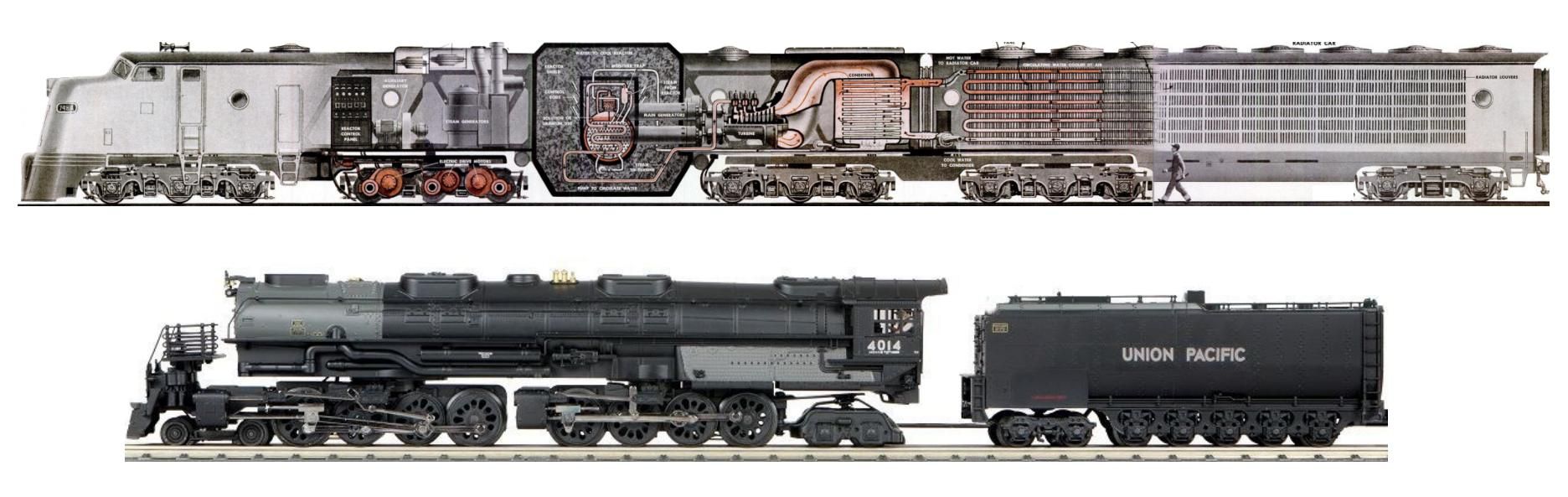

Comparing X12 with Big Boy



Perhaps some of you can help me:

1. I assume X12 is an articulated locomotive. In this drawing I see just an articulation between main locomotive and the cooling car.

2. Is it possible for head piece to be supported by three bogies? Should it be another articulation? Where? ahead control area? Between control area and the reactor?

3. What is the steam generator in control area? Is it the generator to heat the train (mentioned in text)?

Thank you in advance.
Logged

Offline ysi_maniac

  • I will die understanding not this world
Re: Locomotives
« Reply #22 on: June 30, 2022, 08:32:23 PM »
Santa Fe atomic locomotive, compared with X12 design.  :smiley:

Logged

Offline elmayerle

  • Its about time there was an Avatar shown here...
  • Über Engineer...at least that is what he tells us.
Re: Locomotives
« Reply #23 on: June 13, 2023, 06:18:41 AM »
I acquired a reference book on the varied trubine locomotives used by the Union Pacific.  The front of those atomic-powered locomotives resembles the Steam Turbine locomotive that GE produced in the 1945-46 timeframe and which were tested by at least the Union Pacific and the Great Northern but not purchased by either or by any other tester.
Logged
